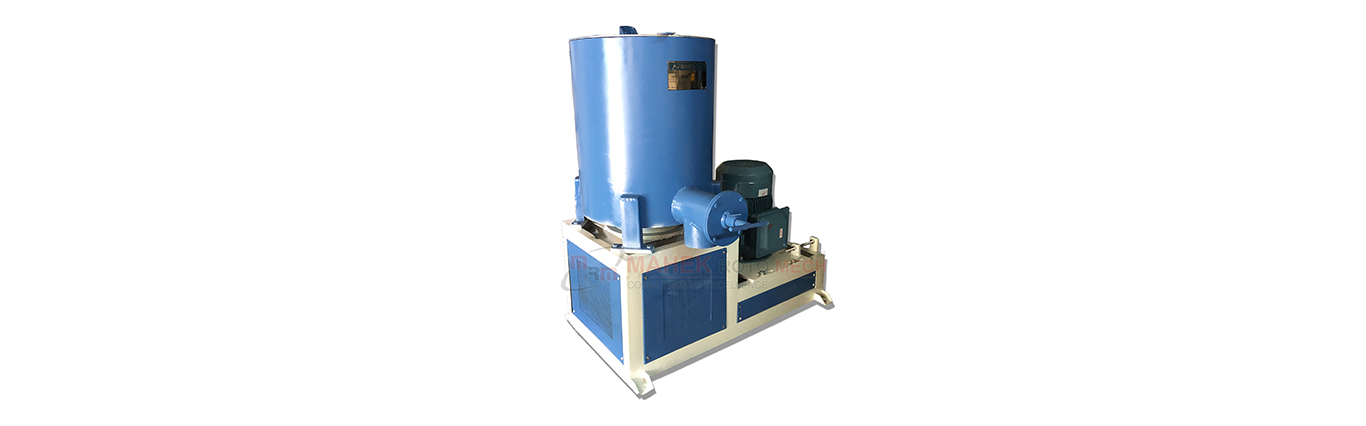

High efficient Mixture machine designed to generate heat due to friction. The Mixture Machine are used to mix granules with pigment paste or pigment powder or different colored granules for uniform blending.The Mixture Machine achieves heat while working is important to blend the pigment paste and polymer powder uniformly.

How It Works :

In the entire process, A plastic material, normally in flakes form or granules form is loaded into drum along Master batch, pigment or additive, usually made from fabricated from mild steel inside and out or fabricated from mild steel on outside and stainless steel on inside as per material requirement. There is mild steel / stainless steel rotor fitted on the shaft on center of the drum. Where’s heavy duty bearing housing provided for the shafting of mixture machine. AC motor is connected with shafting with pulleys and belts. Rotor rotates at high RPM. Where raw material and additives starts to mix with each other and due to friction raw material gets warm up around 70-80 degrees. Warmed raw material makes extruder job effortless. Batch size depends on the drum storage capacity of mixture machine where batch timings are around 10-15 min. After cycle completes, finished raw material is discharged from the output mouth of the drum.

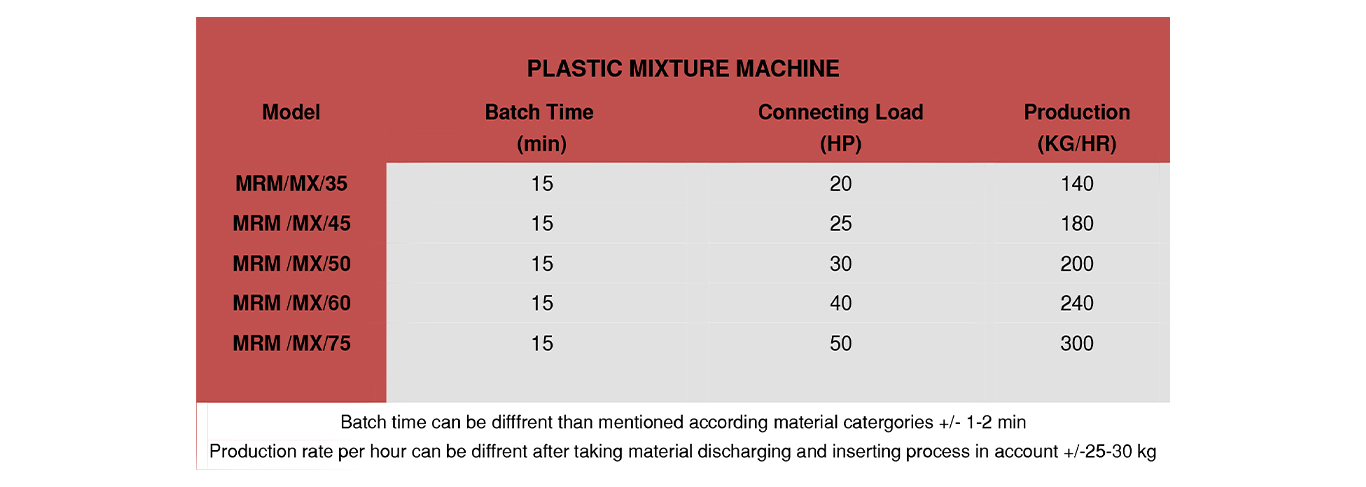

Model Range :

various models available which are classified according their drum storage capacity and production rate. 35 kg to 100 kg drum storage capacity models available.

Production Range :

Production Range of 50 kg/hr to 300 kg/hr.

Salient Features:

  • Manual Opening Raw material feeder mouth.
  • Moisture free blending and compounding with additives in different controlled temperatures.
  • Manual Hand wheel Opening to discharge the Finished Product.
  • Optional Pneumatic controlled powder discharge and lid opening arrangement.
  • Sturdy construction.
  • Driven by Standard Brand AC motor.
  • Stainless steel vessels (optional)(corrosion resistant).
  • Timer control for energy saving, Heavy duty bearing housing for trouble free working.
  • Optional : Thermo couple to monitor temperature

Extras (Optional) :

  • To Warm the plastic scrap for easy extrusion process.
  • For Blending Master Batch with the virgin granules.
  • For Mixing Pigments or Pigment Paste with granules or polymers powder.
